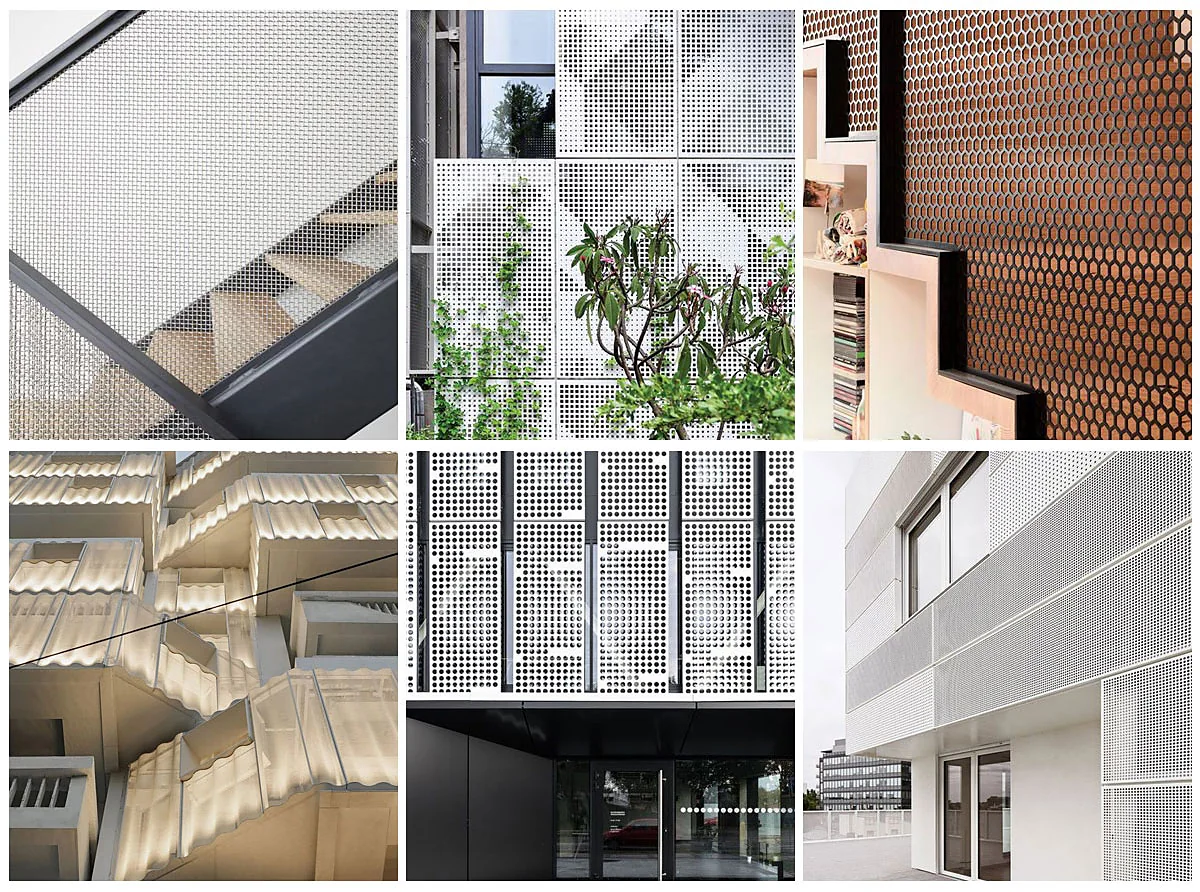

Architecture Screen
Architecture Screen

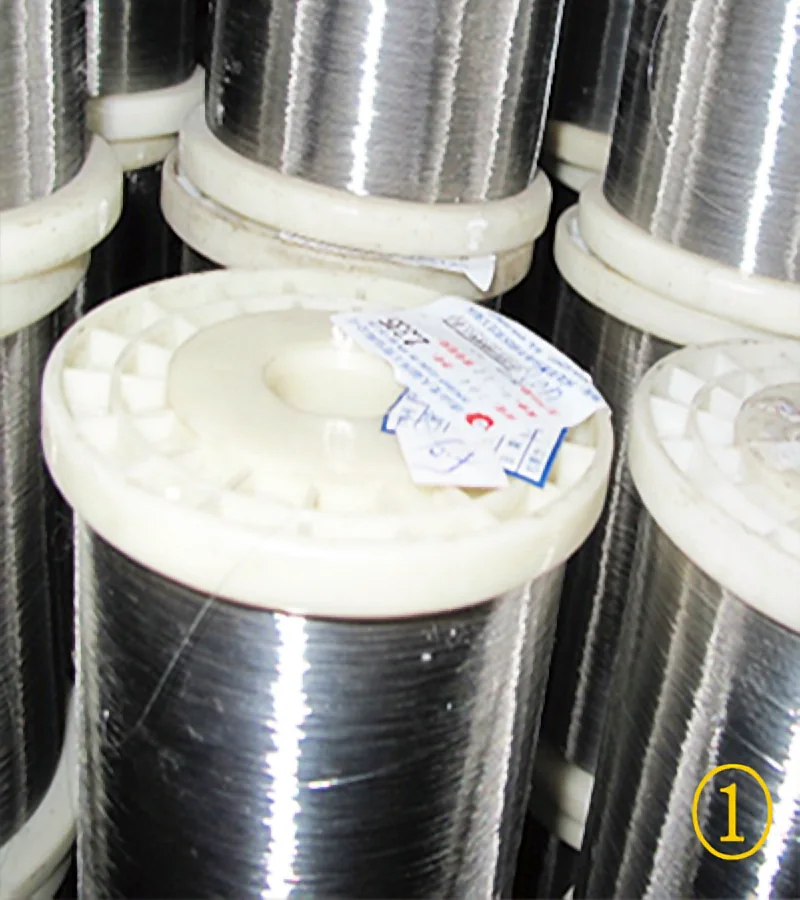

Maishi purchase raw materials from TISCO(Taiyuan Iron & Steel Co.,Ltd.), which is well known for good and stable quality.
After receiving the materials, we will do through inspection: wire diameter checking, surface checking, tolerance checking, contents checking etc.

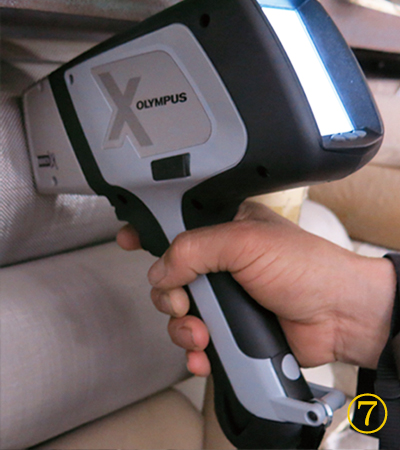

We tested contents by XRF Analyzers( X-Ray Fluorescence) to make sure the raw materials are reliable.
After materials quality confirmed, we will start beam-warping, put the wire on beam, draw the warp wire into heddle and reed.
Debugging the machine (checking if it is running properly or not), then begin to the trial weaving. The machine will be adjusted several times until get the qualified mesh.
Immediate correction (repairing the machine, replacing the material) will be made if any quality problem discovered when adjusting the machine.
After finishing production, we will do the final inspection, including mesh surface checking, length measurement, element content assured(%), quantity, weight per roll, etc.), and then cut the size according to the requirement from the customer.
Packaging in standard ways or as customer’s specific requirements to ready for shipment.
Full Inspection
Full inspection for all the orders we manufacture.
Clearly Tolerance
All the inspection tolerance is open to our clients.
Perfect Service
Perfect service from pre-sale to after-sale
More About Stainless Steel Mesh
Click on the tabs below to learn more about Stainless Steel Mesh!

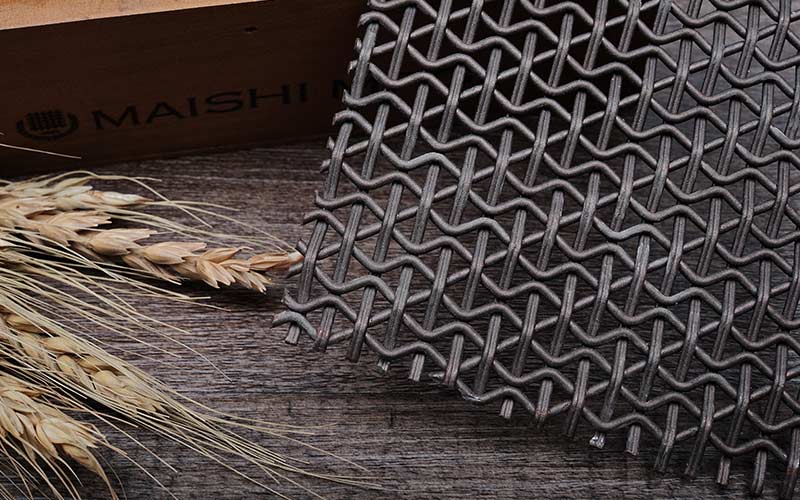

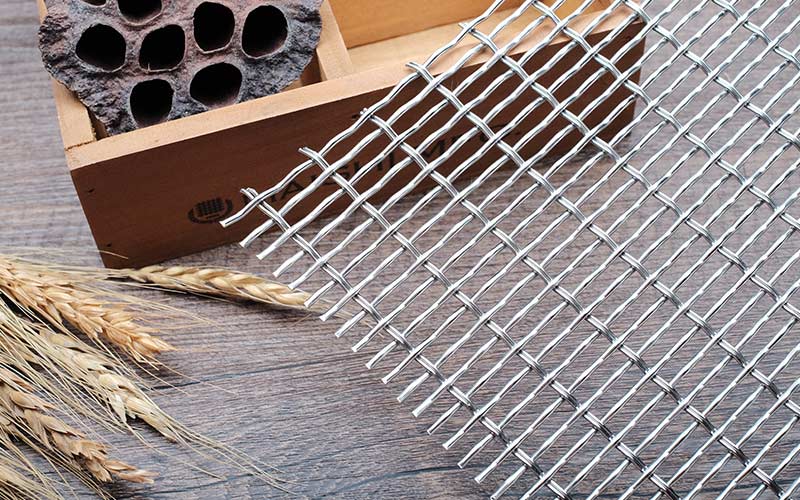

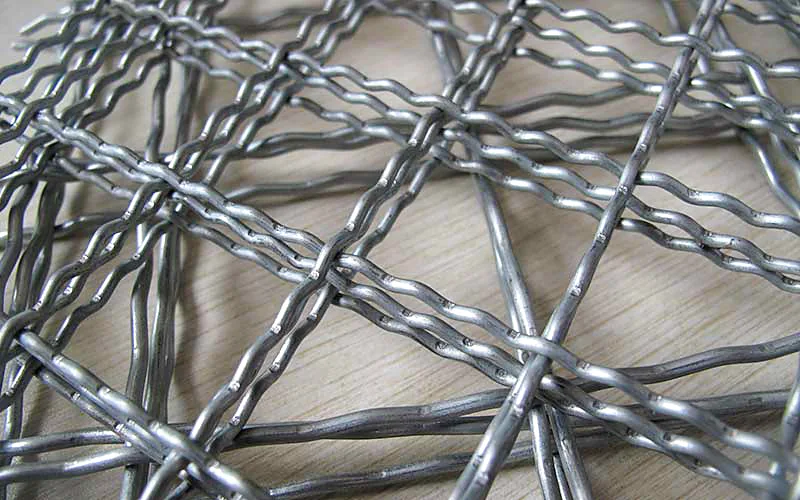

The crimped wire mesh can be made of stainless steel wire, galvanized iron wire or other metal wire. We can customize the mesh as customers’ request.
ASTM A580/A580M-18
Standard Specification for Stainless Steel Wire1
ISO 9044:1999
Industrial woven wire cloth — Technical requirements and testing
ASTM E2016 - 15
Standard Specification for Industrial Woven Wire Cloth1
ASTM E2814 − 11
Standard Guide for Industrial Woven Wire Filter Cloth1
Our inspection item:
>> Raw material test: brightness I roundness I tensile strength 1 material element / wire diameter tolerance
>> Finished products: hole size I wire straightness I wiath 1 length 1 surface flatness
QUALITY STANDARD
Computational Formula
Weight(kg) = Wire dia. X Wire dia. X Mesh count x Length X Width÷2
Mesh count = 25.4÷ (Wire dia. + Hole size)
[Unit of above: “Wire dia.” in “mm”, “Hole size” in “mm” “Length” in “m”, “Width” in “m” ]
Quality Standard
Our products are produced based on GB/T 5330-2003
Since 65Mn is more expensive than other material, is it the best material of quarry mesh screen?
The 65Mn is always used for quarry screen, but the 65Mn is not suitable for all the quarry screen?
The cost of 65Mn is higher than 45# steel, SO many customers think the quarry screen made from 65Mn is better than it which is made from 45# steel. In most conditions, 65Mn is hard and wear-resistant, but crisp. So if the curvature is more than 6%, the 65Mn is easily to smash.45# steel is better than 65Mn in this condition.
What’s more, the 65Mn and 45# steel are all not suitable for welding, if the quarry screen need to be welded after weaving, it’s better to use Q235B.
So it’s not correct to judge the material by price, you should find the right material for right specification.
Production process
Maishi purchase raw materials from TISCO(Taiyuan Iron & Steel Co.,Ltd.), which is well known for good and stable quality.
After receiving the materials, we will do through inspection: wire diameter checking, surface checking, tolerance checking, contents checking etc.
We tested contents by XRF Analyzers( X-Ray Fluorescence) to make sure the raw materials are reliable.
After materials quality confirmed, we will start beam-warping, put the wire on beam, draw the warp wire into heddle and reed.
Debugging the machine (checking if it is running properly or not), then begin to the trial weaving. The machine will be adjusted several times until get the qualified mesh.
Immediate correction (repairing the machine, replacing the material) will be made if any quality problem discovered when adjusting the machine.
After finishing production, we will do the final inspection, including mesh surface checking, length measurement, element content assured(%), quantity, weight per roll, etc.), and then cut the size according to the requirement from the customer.
Packaging in standard ways or as customer’s specific requirements to ready for shipment.
Raw material check
Meterial preparation

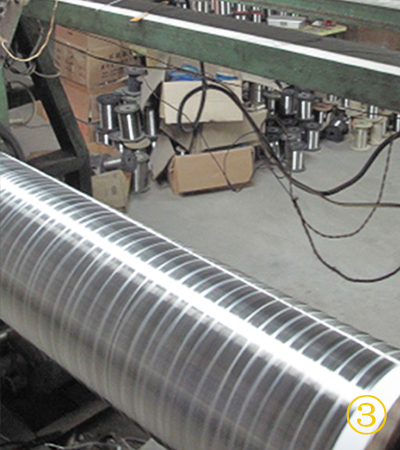

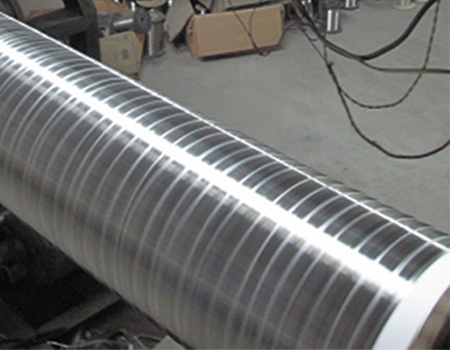

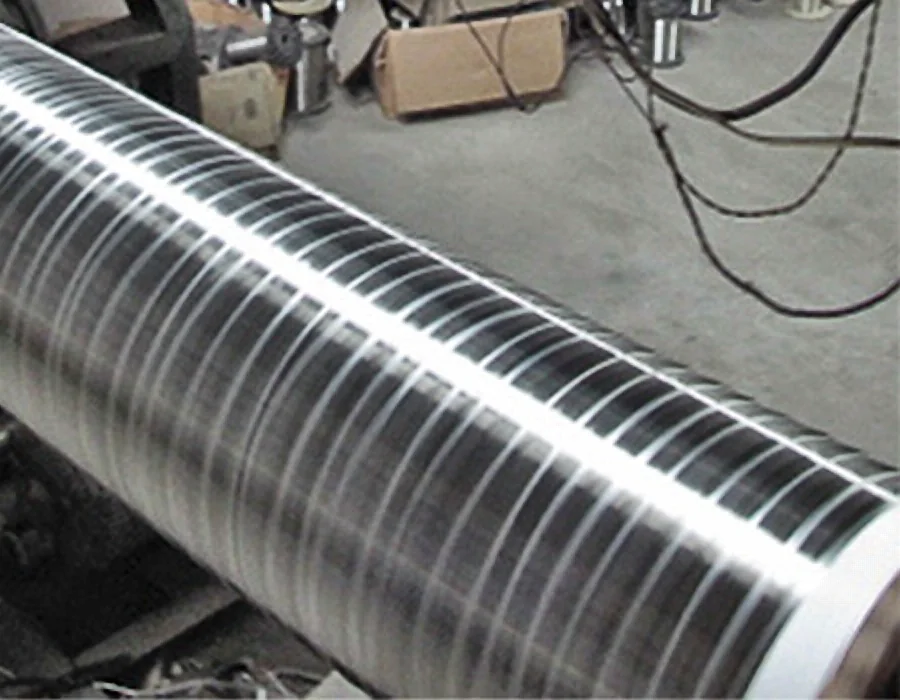

Finish dia.warping beam

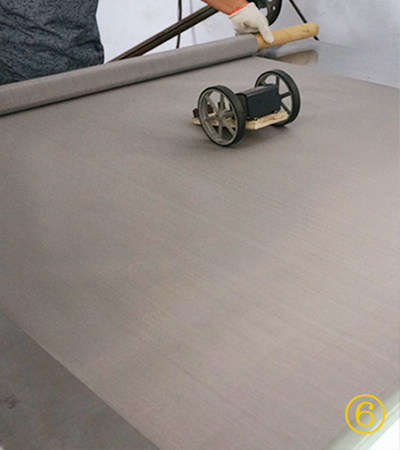

Length check
Surface check

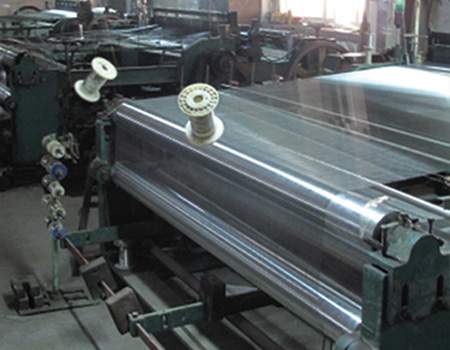

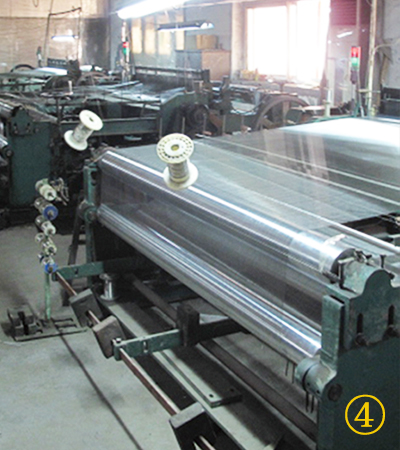

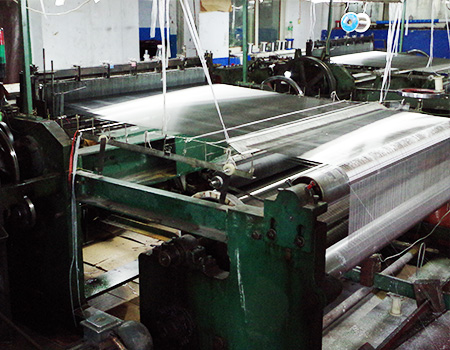

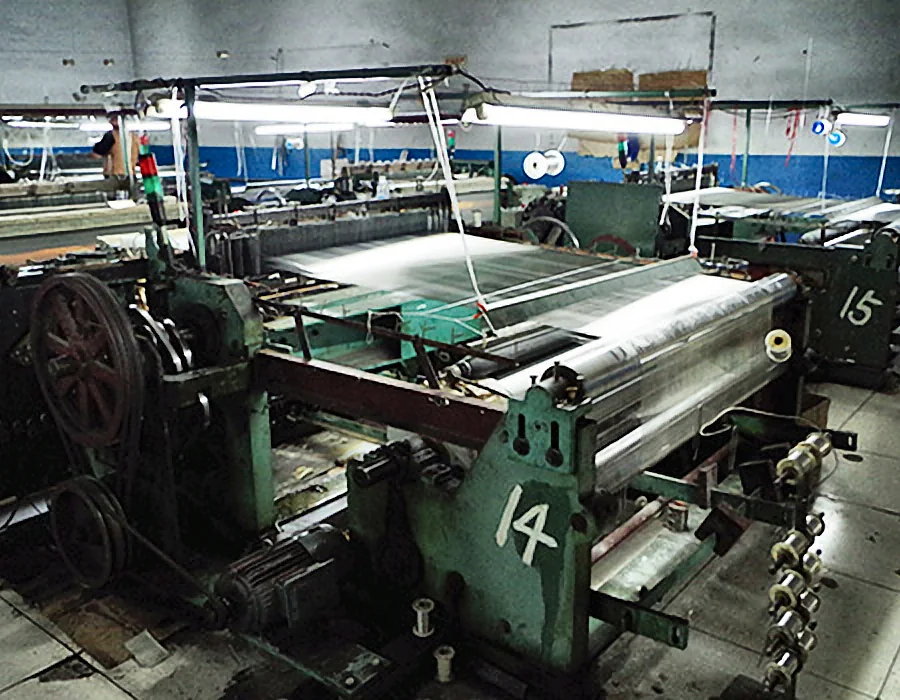

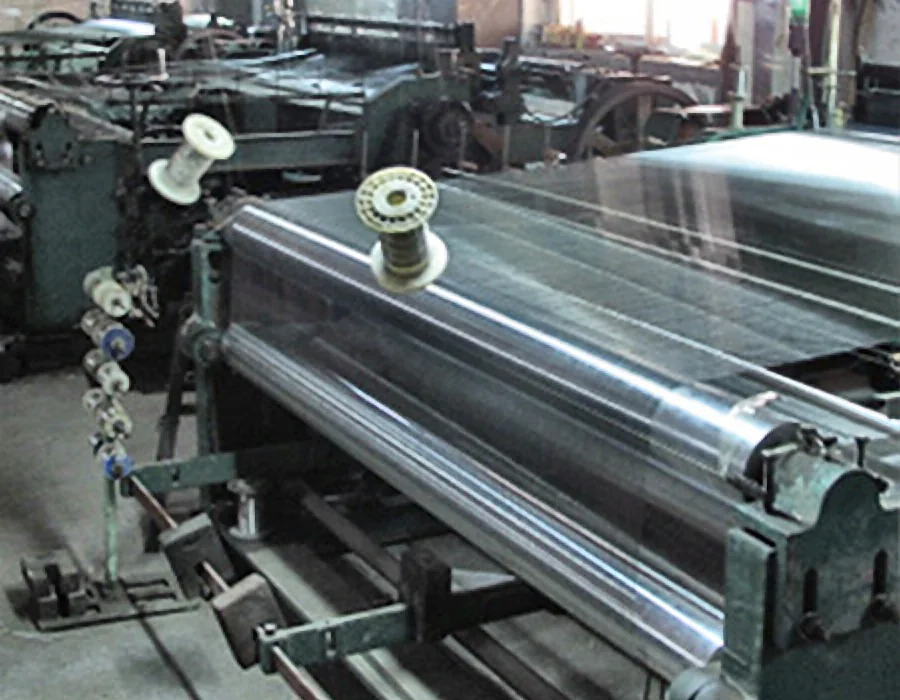

Mesh weaving
Material check
Packing

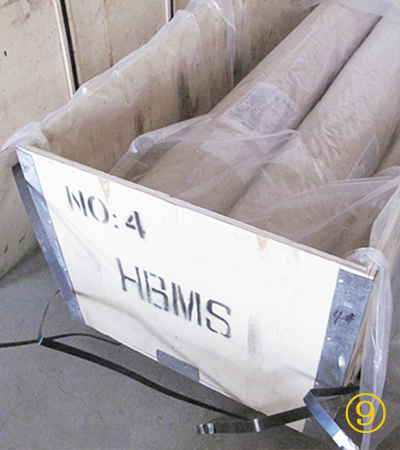

Packing into box
Factory Information:

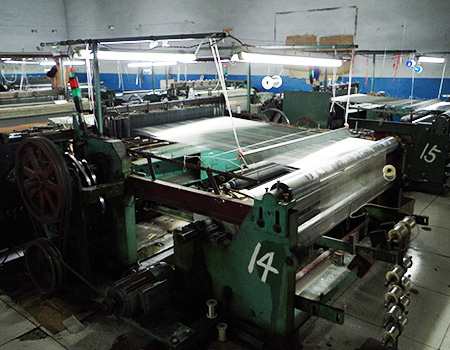

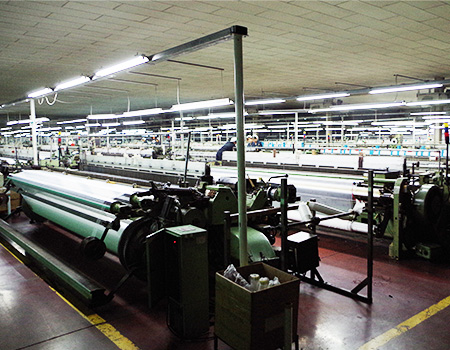

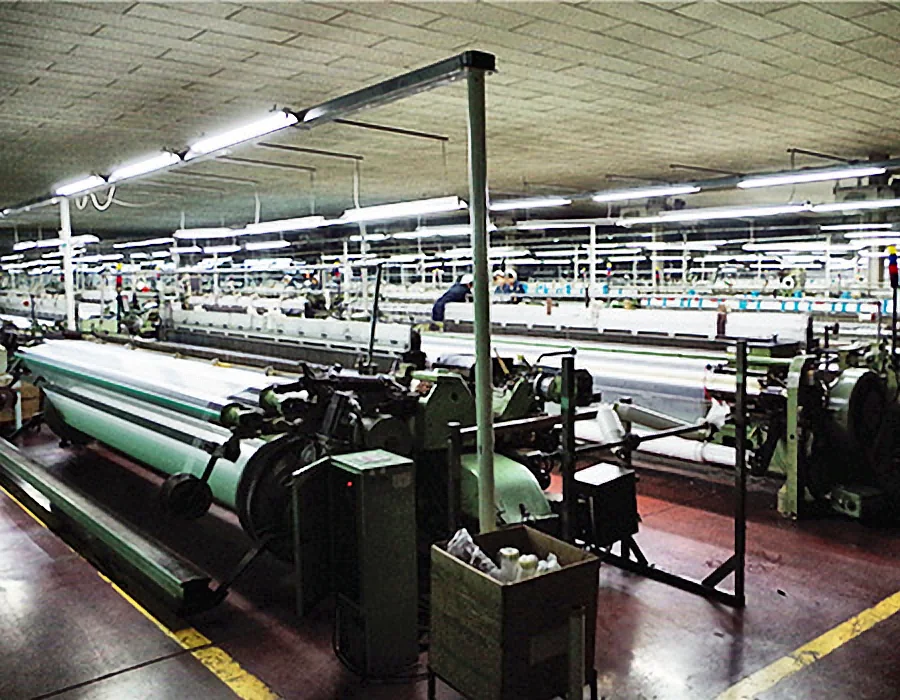

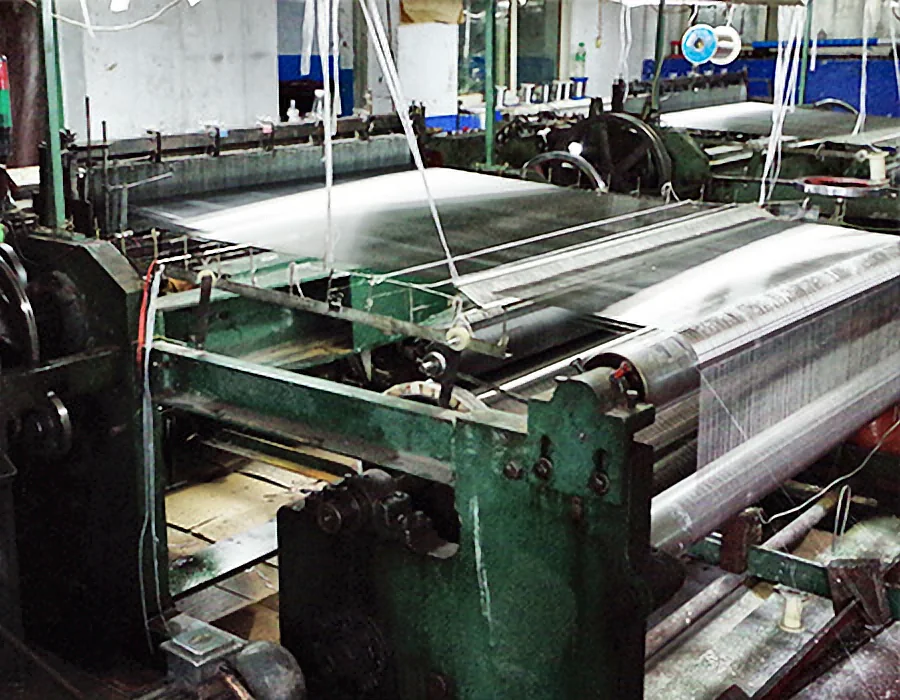

Machine information:
Now we have 86sets in the production line.
1300 Series: 50sets
1600 Series: 25sets
D looms: 11sets
Inspection process
Our inspection item:
>> Raw material test: brightness I roundness I tensile strength 1 material element / wire diameter tolerance
>> Finished products: hole size I wire straightness I wiath 1 length 1 surface flatness
QUALITY STANDARD
Computational Formula
Weight(kg) = Wire dia. X Wire dia. X Mesh count x Length X Width÷2
Mesh count = 25.4÷ (Wire dia. + Hole size)
[Unit of above: “Wire dia.” in “mm”, “Hole size” in “mm” “Length” in “m”, “Width” in “m” ]
Quality Standard
Our products are produced based on GB/T 5330-2003
Since 65Mn is more expensive than other material, is it the best material of quarry mesh screen?
The 65Mn is always used for quarry screen, but the 65Mn is not suitable for all the quarry screen?
The cost of 65Mn is higher than 45# steel, SO many customers think the quarry screen made from 65Mn is better than it which is made from 45# steel. In most conditions, 65Mn is hard and wear-resistant, but crisp. So if the curvature is more than 6%, the 65Mn is easily to smash.45# steel is better than 65Mn in this condition.
What’s more, the 65Mn and 45# steel are all not suitable for welding, if the quarry screen need to be welded after weaving, it’s better to use Q235B.
So it’s not correct to judge the material by price, you should find the right material for right specification.
MAISHI is a leading manufacturer of high-tech wire mesh products.
Through our dedication to customer-centric innovation and over 30 years development, MAISHI products have been exported to over 95 countries, serving more than 30 of the top 500 enterprises. Read More…
