Razor Wire & Barbed Wire
Razor Wire & Barbed Wire
Material:
Electro galvanized iron
Electro galvanized steel
Hot-dipped galvanized iron
Hot-dipped galvanized steel
Stainless steel
Black iron wire and PVC coated in orange, green, yellow and other colors
Electro galvanized wire and PVC coated in orange, green, yellow and other colors
Hot-dipped galvanized wire and PVC coated in orange, green, yellow and other colors
Full Inspection
Full inspection for all the orders we manufacture.
Clearly Tolerance
All the inspection tolerance is open to our clients.
Perfect Service
Perfect service from pre-sale to after-sale
More About Razor Wire & Barbed Wire
Click on the tabs below to learn more about Razor Wire & Barbed Wire!

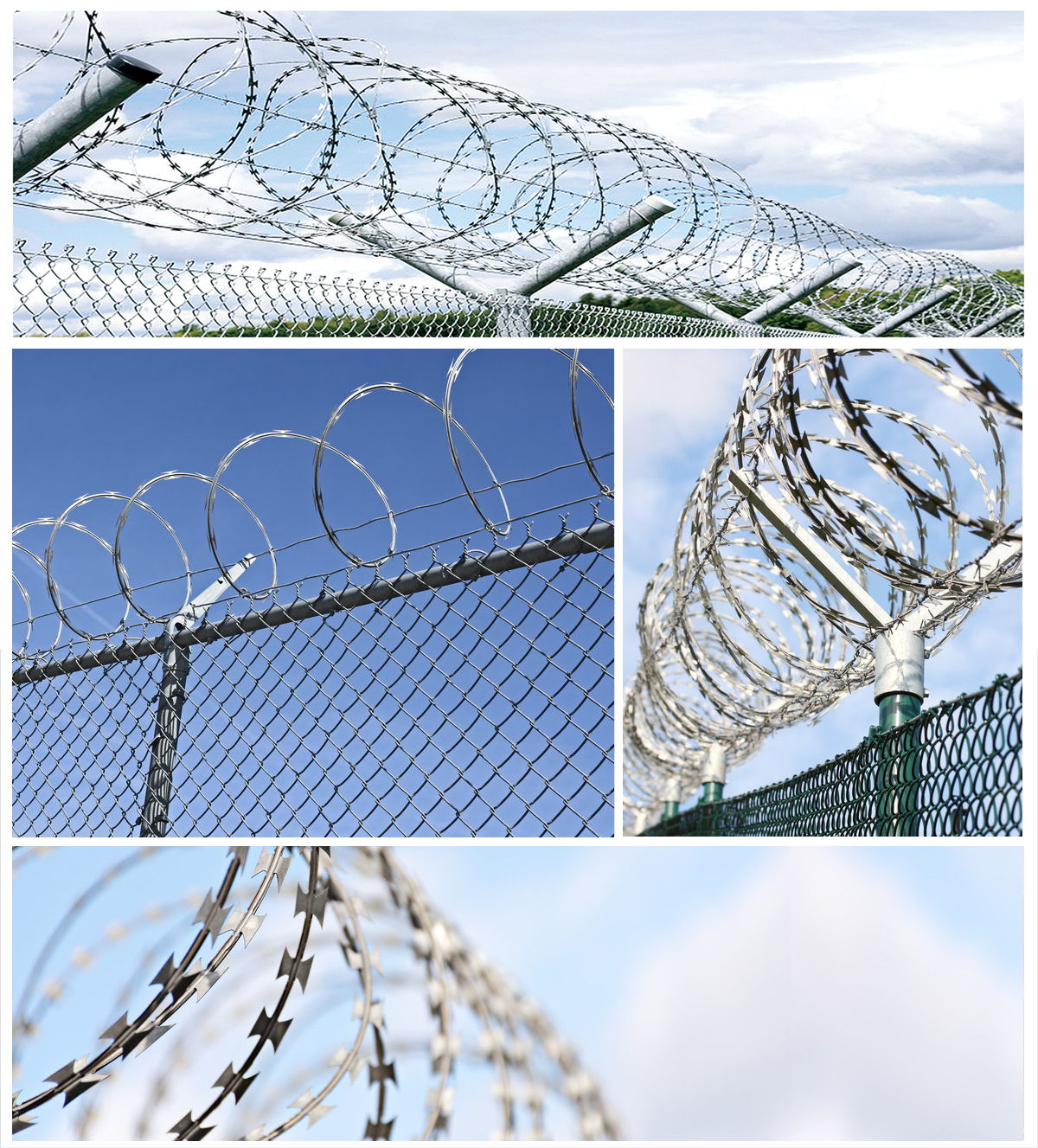

Razor Wire
| Concertina Razor Wire | |||||||
| Reference Number |
Blade Style | Thickness (mm) |
Wire Dia (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb spacing (mm) |
Weight (g)/m |
| BTO-10 |  |
0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 | 77g/m |
| BTO-12 |  |
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | 79g/m |
| BTO-18 |  |
0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 | 87g/m |
| BTO-22 |  |
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | 91g/m |
| BTO-28 |  |
0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 | 103g/m |
| BTO-30 |  |
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | 95g/m |
| CBT-60 |  |
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | 106g/m |
| CBT-65 |  |
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | 115g/m |
| BARBED TAPE WIRE SPECIFICATION | |||||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | |||
| 450mm | 33 | 7-8M | CBT-60.65 | Singlecoil | |||
| 500mm | 56 | 12-13M | CBT-60.65 | Singlecoil | |||
| 700mm | 56 | 13-14M | CBT-60.65 | Singlecoil | |||
| 960mm | 56 | 14-15M | CBT-60.65 | Singlecoil | |||
| 450mm | 56 | 8-9M(3CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 500mm | 56 | 9-10M(3CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 600mm | 56 | 10-11M(3CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 600mm | 56 | 8-10M(5CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 700mm | 56 | 10-12M(5CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 800mm | 56 | 11-13M(5CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 900mm | 56 | 12-14M(5CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 960mm | 56 | 13-15M(5CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| 980mm | 56 | 14-16M(5CLIPS) | BTO-10.12.18.22.28.30 | Crosstype | |||
| FLAT-WARP RAZOR WIRE | |||||||
| High | Standard cover length | Weight | |||||
| 500mm(20inch) | 15M(50ft) | 9.5kg(21lbs) | |||||
| 700mm(28inch) | 15M(50ft) | 13.0kg(29lbs) | |||||
| 900mm(36inch) | 15M(50ft) | 14.5kg(32lbs) | |||||
| WELDED RAZOR WIRE FENCE | |||||||
| Hole Size | Hole Style | Width | Length | Blade style | |||
| 75mm x 150mm | Square or Diamond | 0.3m-5.8m | 1.0m-11.8m | BTO-10.12.18.22.28.30 CBT-60.65 | |||
| 100mm x 100mm | Square or Diamond | 0.3m-5.8m | 1.0m-11.8m | BTO-10.12.18.22.28.30 CBT-60.65 | |||
| 100mm x 150mm | Square or Diamond | 0.3m-5.8m | 1.0m-11.8m | BTO-10.12.18.22.28.30 CBT-60.65 | |||
| 100mm x 200mm | Square or Diamond | 0.3m-5.8m | 1.0m-11.8m | BTO-10.12.18.22.28.30 CBT-60.65 | |||
| 150mm x 300mm | Square or Diamond | 0.3m-5.8m | 1.0m-11.8m | BTO-10.12.18.22.28.30 CBT-60.65 | |||
Barbed Wire

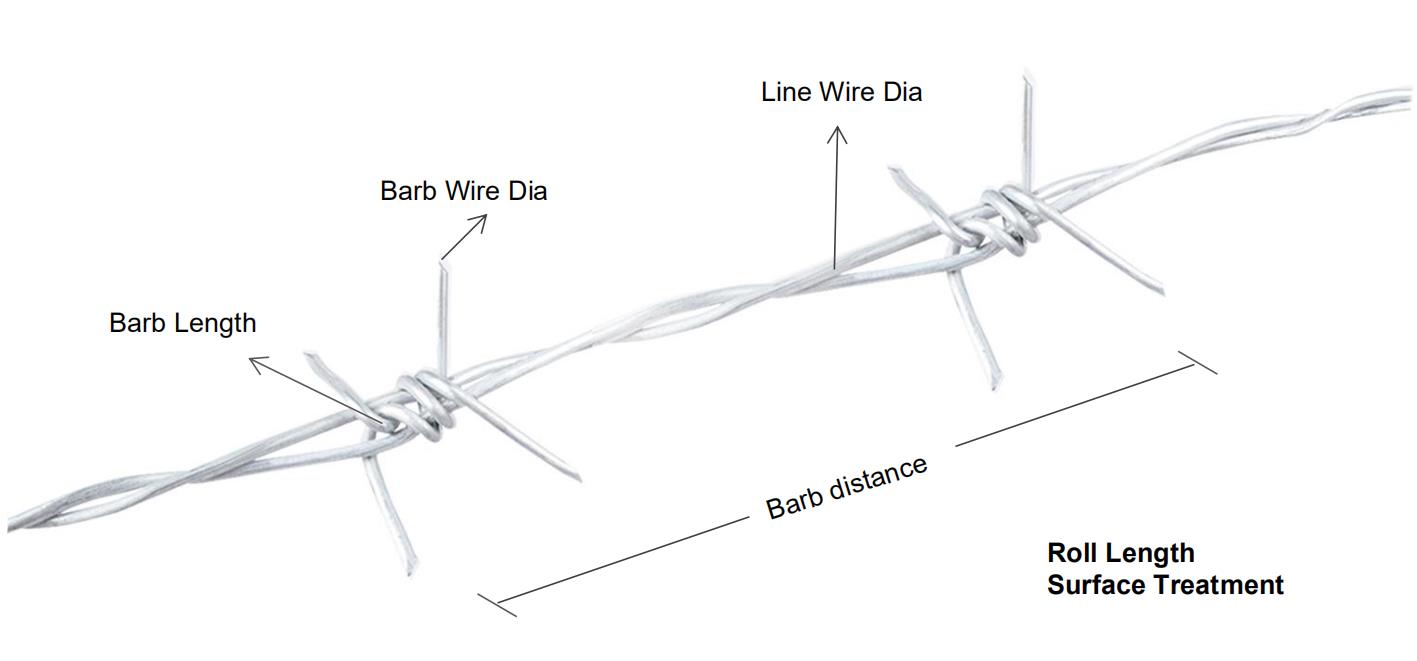

| Type | Wire gauge (SWG) Strand wire x Barb wire(mm) |
Barb distance(cm) | Barb length(cm) | |
| Electric galvanized barbed wire; Hot-dip zinc plating barbed wire,Stainless steel wire |
4.00mm x 2.80mm | 7.5-15 | 1.5-3 | |
| 3.60mm x 2.80mm | ||||
| 3.20mm x 2.60mm | ||||
| 2.60mm x 2.60mm | ||||
| 2.60mm x 2.00mm | ||||
| 2.00mm x 2.00mm | ||||
| 2.00mm x 1.60mm | ||||
| 1.60mm x 1.60mm | ||||
| 1.60mm x 1.20mm | ||||
| 2.30mm x 2.20mm | ||||
| 2.20mm x 2.00mm | ||||
| 3.00mm x 2.80mm | ||||
| PVC coated barbed wire |
Before coating | After coating | 7.5-15 | 1.5-3 |
| BWG3.0mm- 0.80mm |
BWG4.10mm- 1.40mm | |||
| SWG2.90mm- 0.90mm |
SWG4.00mm- 1.40mm | |||
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC/PE PAINTING thickness:0.4mm-0.6mm |
||||
AS/NZS 4671: 2001 Australia/New Zealand Standard
DIN488 GERMAN STANDARD
BS4483 BRITISH STANDARD
Maishi Production Capacity & Delivery time
6 sets 2.6M full automatic welding machine
Razor Wire
Barbed Wire
Single strand: diameter x diameter x 0.00617 x length x 2
For example: strand wire diameter is 2.00mm, barbed wire is 2.00mm, roll length is 400m, then the weight is
2.00×2.00×0.00617x400mx2=9.87kg/roll
Double strand: mainline diameter x mainline diameter x0.00617 x length x 2 + barb diameter x
barb diameter x 0.00617 x length x 1
For example: strand wire diameter is 2.00mm, barbed wire is 1.80mm, roll length is 400m, then the weight is
2.00×2.00×0.00617x400mx2+1.80×1.80×0.00617x400x1=17.86kg/roll
Weight calcuation: Longitudinal wire dia. x longitudinal wire dia. x 0.00617 x mesh length x numbers of wire in width direction+cross wire dia. x cross wire dia. x 0.00617 x mesh width x numbers of wire in length direction +edge wire dia. x edge wire dia. x 0.00617 x mesh length x 2=KG/sheet

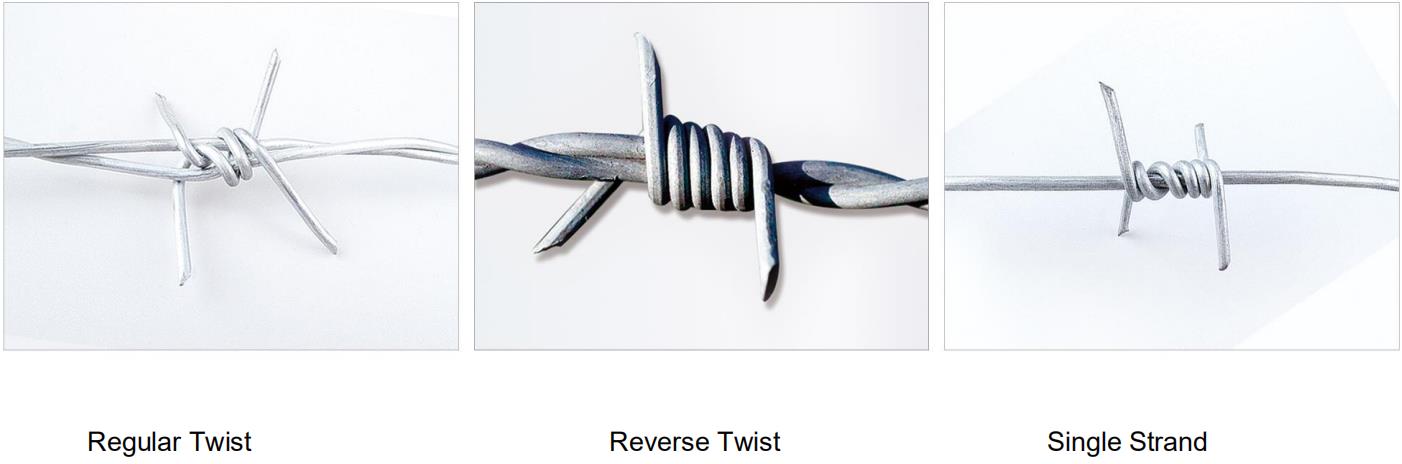

Weaving way of barbed wire: Regular twist and Reverse twist
Products Knowledge
Tensile Of Strength:
Soft: about 380N/mm2
Stronger: about 800N/mm2-1200N/mm2
For steel wire, we only produce reverse twist because of the stronger tensile strength, or it will be deformated easily due to the less winding. Also also the max core wire and barbed wire diameter we can do is 2.0mm. Please make sure the main specifications on the drawings.
Normaly it does not need packing as it can loading more without packing.
The pallet packing is easy for loading and transport. According to the stipulation of the shipping company, if your order less than one container , it must be on the pallet .The loading quantity depends on the roll size you required, it isbetter to use 20′ container ,because it can load more quantity, the shipping cost averaged to each roll will be cheaper. All sizes can be customized. please contact with MAISHI for more details.
