low carbon steel wire, pvc coated wire，stainless wire. Process: weaving and welding
Coating process: Electric galvanized, hot-dip galvanized, PVC coated,epoxy powder coated
Uses: Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry
| Openning | Wire diameter | Available width |
| 1/4" × 1/4" | 0.45mm-0.7mm | 300mm-1830mm |
| 3/4" × 3/4" | 0.7mm-2.0mm | 300mm-1830mm |
| 3/8" × 3/8" | 0.7mm-1.1mm | 300mm-1830mm |
| 5/8" × 5/8" | 0.8mm-1.2mm | 300mm-1830mm |
| 1/2" × 1/2" | 0.45mm-1.6mm | 300mm-1830mm |
| 1" × 1" | 0.7mm-3.0mm | 300mm-2000mm |
| 1" × 1/2" | 0.8mm-1.6mm | 300mm-1828mm |
| 1-1/2" × 1-1/2" | 0.7mm-3.5mm | 300mm-1828mm |
| 1" × 2" | 1.6mm-2.1mm | 300mm-1828mm |
| 2" × 2" | 0.7mm-4.0mm | 300mm-2500mm |
| 2" × 3" | 1.5mm-3.5mm | 300mm-2000mm |
| 2" × 4" | 2.0mm-4.0mm | 300mm-1828mm |
| 3" × 3" | 1.0mm-4.5mm | 300mm-2500mm |
| 3" × 4" | 1.5mm-4.5mm | 300mm-2000mm |
| 4" × 4" | 1.0mm-4.5mm | 300mm-2500mm |
| 5" × 5" | 2.5mm-4.5mm | 300mm-2500mm |
| 6" × 6" | 2.5mm-4.5mm | 300mm-2500mm |
| Openning | Wire diameter | Available width |
| 1/2" × 1/2" | 0.45mm-2.0mm | 100mm-1830mm |
| 1" × 1" | 0.7mm-3.5mm | 100mm-2000mm |
| 1" × 1/4" | 0.45mm-4.0mm | 100mm-2000mm |
| 1" × 1/2" | 0.45mm-4.0mm | 100mm-3600mm |
| 2" × 2" | 0.7mm-6.0mm | 100mm-3600mm |
| 3" × 3" | 1.0mm-7.0mm | 100mm-3600mm |
| 4" × 4" | 1.0mm-8.0mm | 100mm-3600mm |
| 5" × 5" | 2.5mm-9.0mm | 100mm-3600mm |
| 6" × 6" | 2.5mm-9.0mm | 100mm-3600mm |
| Roll or panel length can be negotiated, welcome to contact us for further information. | ||
| AS/NZS 4671:2000 AUSTRALIA / NEW ZEALAND STANDARD （SIZE：6000X2400mm） | ||||||
| Product Code | Std Unit | ongitudinal Wires | Cross Wires | Mass(kg) | Dimensions(m) | |
| SL52 | sheet | 10×4.77@200+4×4@100 | 30×4.77@200 | 21 | 6×2.4 | |
| SL62 | sheet | 10×6@200+4×4.77@100 | 30×6@200 | 33 | 6×2.4 | |
| SL72 | sheet | 10×6@200+4×4.77@100 | 30×6.75@200 | 41 | 6×2.4 | |
| SL81 | sheet | 25×7.6@100 | 60×7.6@200 | 105 | 6×2.4 | |
| SL82 | sheet | 10×7.6@200+4×5.37@100 | 30×7.6@200 | 52 | 6×2.4 | |
| SL92 | sheet | 10×8.6@200+4×6@100 | 30×8.6@200 | 66 | 6×2.4 | |
| SL102 | sheet | 10×9.5@200+4×6.75@100 | 30×9.5@200 | 80 | 6×2.4 | |
|
Normally the customer purchased the size by 5.8mx2.2m, it is much easier for loading in container. We only use 40HQ open top container if the mesh size is 6.0mx2.4m, so the cost is much more expensive. | ||||||
| BS4483 BRITISH STANDARD | ||||||
| Ref No. | Std Unit | Longitudinal Wires mm |
Cross Wires mm | Pitch of wire | No. of sheet per ton |
Mass Kg/m2 |
| A393 | Sheet | 10 | 10 | 200 @ 200 | 15 | 6.16 |
| A252 | Sheet | 8 | 8 | 200 @ 200 | 22 | 3.95 |
| A193 | Sheet | 7 | 7 | 200 @ 200 | 29 | 3.02 |
| A142 | Sheet | 6 | 6 | 200 @ 200 | 40 | 2.22 |
| A98 | Sheet | 5 | 5 | 200 @ 200 | 57 | 1.54 |
| DIN488 GERMAN STANDARD (SIZE:2150MMX5000MM) | ||||||
| Ref No. | Std Unit | Longitudinal Wires mm |
Cross Wires mm | Pitch of wire | No. of sheet per ton |
Mass Kg/m2 |
| Q131 | Sheet | 5 | 5 | 150 @ 150 | 22.476 | 2.091 |
| Q188 | Sheet | 6 | 6 | 150 @ 150 | 32.401 | 3.014 |
| Q221 | Sheet | 6.5/5.0 | 6.5 | 150 @ 150 | 33.707 | 3.136 |
| Q295 | Sheet | 7.5/5.5 | 7.5 | 150 @ 150 | 44.245 | 4.116 |
| Q378 | Sheet | 8.5/6 | 8.5 | 150 @ 150 | 66.659 | 5.157 |
| PHYSICAL PROPERTIES | ||||||
| material | physical_properties | |||||
| Rel/MPa | Rm/MPa | A/% | R m/R el | Rel/Rel | Agt/% | |
| HRB335 HRB335E | ≥335 | ≥455 | ≥17 | ≥1.25 | ≤ 1.30 | ≥7.5≥9.0 |
| HRB400 HRB400E | ≥400 | ≥540 | ≥16 | ≥1.25 | ≤ 1.30 | ≥7.5≥9.0 |
| HRB500 HRB500E | ≥500 | ≥630 | ≥15 | ≥1.25 | ≤ 1.30 | ≥7.5≥9.0 |
AS/NZS 4671: 2001 Australia/New Zealand Standard
DIN488 GERMAN STANDARD
BS4483 BRITISH STANDARD
Maishi Production Capacity & Delivery time
6 sets 2.6M full automatic welding machine
Uses: Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry
Weight calcuation: Longitudinal wire dia. x longitudinal wire dia. x 0.00617 x mesh length x numbers of wire in width direction+cross wire dia. x cross wire dia. x 0.00617 x mesh width x numbers of wire in length direction +edge wire dia. x edge wire dia. x 0.00617 x mesh length x 2=KG/sheet
 |
 |

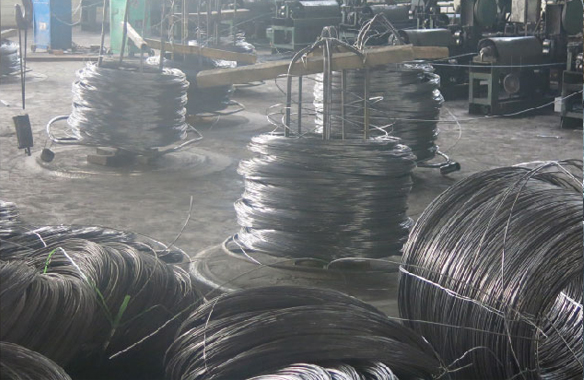

| Raw Material | |
 |
|
| Straightening | |
 |
 |
| Welding | |
 |
 |

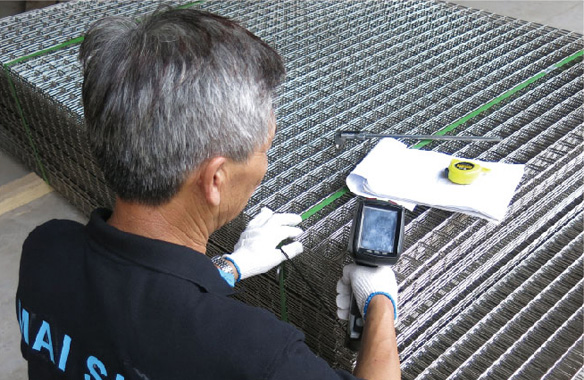

| Inspection | |
 |
 |
| Finised Mesh | Packing |
 |
|
| Loading | |
Area:4500㎡; Workers:28; Engineer:4
 |
 |
Machine:22 sets; (Mesh machine 8 sets; Net roll machine 10 sets; Steel mesh machine 4sets)
 |
 |
Our products can meet below quality standard:
[JGJ/T114-1997]National Standard
[BS4483]British Standard
[DIN488]German Standard
[SIA16211 S550] Swiss Fabric Standard
[NFA35-016]Franch Fabric Standard
[onORM B4200/7]Australian Fabric Standard
